Alerts & Notifications

Overview#

Aforo's notification subsystem pushes events to your systems the moment something material happens — an invoice is finalized, a wallet crosses a low-balance threshold, a customer's usage trips a quota. Every event ships as a signed JSON POST to a webhook endpoint you register. You verify the HMAC signature, parse the payload, react.

There are two kinds of events. SYSTEM events are the 14 built-in ones Aforo publishes from its own services (billing-service, pricing-service, usage-ingestor, analytics-service, organization-service). CUSTOM events are ones you define in the operator UI with a name, severity, default delivery channels, and optionally a JSON trigger rule that fires the event automatically when a matching SYSTEM event lands.

How firing works#

From the moment a business action happens to the moment your webhook receives a signed POST, the path is the same for every event type:

Business action                           Aforo internal                                Your system
──────────────────                          ──────────────────                              ──────────────
Invoice finalized                ─▶ billing-service publishes Kafka event
                                       │
                                       ▼
                                 CatalogEventBridgeConsumer
                                 maps Kafka topic ─▶ SYSTEM event type
                                       │
                                       ▼
                                 CustomerNotificationService.dispatch
                                       │
                                       ├─▶ load customer's preferences
                                       │    (preferred channels, cooldown)
                                       │
                                       ├─▶ load customer's webhook endpoints
                                       │    that subscribed to this event
                                       │
                                       ├─▶ V140 TriggerEngine
                                       │    (fan-out to CUSTOM events
                                       │     whose trigger rule matches)
                                       │
                                       ▼
                                 WebhookChannel.dispatch
                                       │
                                       ├─▶ compute HmacSHA256(t + "." + body, secret)
                                       │
                                       ▼                                            HTTPS POST + signature
                                                                       ─────────────▶ your /webhooks/aforo
                                                                                              │
                                                                                              ▼
                                                                                       verify signature
                                                                                       parse payload
                                                                                       react

Three things to pin down before reading further:

• Webhook endpoints are scoped to a customer — not a tenant. Each row in customer_webhook_endpoints is keyed by (tenant_id, end_customer_id). An event for Acme reaches only Acme's endpoints — not ZingPing's, even in the same tenant.
• Events are filtered by subscription. An endpoint registered with events: ["INVOICE_GENERATED"] will NOT receive SUBSCRIPTION_CANCELLED. The one exception is the reserved webhook.test probe, which bypasses the filter for wiring smoke tests.
• Every delivery is signed with HMAC-SHA256 using the secret you supplied at registration. The signature lives in the X-Aforo-Signature header in Stripe-style t=<unix>,v1=<hex> format. You verify it before trusting the body.

The 14 SYSTEM events#

These are emitted by Aforo's own services when their owning business action happens. You don't fire them — you subscribe to them.

Example payload#

Every event arrives as JSON with the same envelope shape. The payload object varies by event type; the outer fields are constant.

{
  "eventId": "evt_01HZB5XKQ2N4T9JFXA1MZ8VQP7",
  "eventType": "INVOICE_GENERATED",
  "tenantId": "tenant_smartai",
  "customerId": "customer_acme",
  "occurredAt": "2026-06-13T14:22:08.412Z",
  "payload": {
    "invoiceId": "inv_2026_06_0123",
    "invoiceNumber": "INV-2026-0123",
    "subscriptionId": "sub_8f3a",
    "amountDue": 249.00,
    "currency": "USD",
    "dueAt": "2026-07-13T00:00:00Z",
    "billingPeriodLabel": "June 2026"
  }
}

Custom events (V140)#

Custom events are how you push your own business-meaningful events through the same dispatch + signing + retry pipeline as the 14 built-ins. Two ways they fire:

Manual emit — your backend calls /emit#

Best when your backend already knows when the event should fire and you just need Aforo to handle the fan-out + signing + retry. The endpoint accepts any JSON payload and forwards it verbatim:

curl -X POST 'https://storefront.aforo.ai/api/v1/notification-event-definitions/WHALE_CUSTOMER/emit' \
  -H 'X-Tenant-Id: tenant_smartai' \
  -H 'Authorization: Bearer <your-jwt>' \
  -H 'Content-Type: application/json' \
  -d '{
    "customerId": "customer_acme",
    "payload": {
      "customerName": "Acme Inc.",
      "subscriptionId": "sub_8f3a",
      "productId": "prod_translation_api",
      "usagePercent": 92,
      "note": "Acme crossed 90% of monthly quota"
    }
  }'

The endpoint returns 202 Accepted on success with no body. The event is queued for dispatch and sent on the same path as SYSTEM events.

Auto-trigger — declarative rule on SYSTEM events#

Best when you want a SYSTEM event to also fan out to a CUSTOM event for downstream routing — for example, an INVOICE_GENERATED over $10,000 should also fire a WHALE_CUSTOMER alert to a dedicated Slack channel.

Trigger rules are JSON predicates with three building blocks: sourceEvents (which SYSTEM events arm this trigger), match (the predicate to evaluate against the event payload), and the leaf operators (eq, gte, in, regex, etc).

{
  "sourceEvents": ["USAGE_THRESHOLD_REACHED", "USAGE_LIMIT_EXCEEDED"],
  "match": {
    "all": [
      { "field": "event.usagePercent", "op": "gte", "value": 200 },
      { "field": "event.tier",         "op": "eq",  "value": "enterprise" },
      { "not": {
          "field": "event.metricName",
          "op": "in",
          "value": ["pings", "heartbeats"]
        }
      }
    ]
  }
}

Supported operators: eq, ne, gt, gte, lt, lte, in, not_in, contains, starts_with, ends_with, regex, and exists. Composites are all (AND), any (OR), and not.

You define a custom event in the operator UI under Alerts & Notifications → + Add Event Type. Pick name + category + severity, choose the default delivery channels, optionally paste the trigger rule JSON, save. The next matching SYSTEM event auto-fires it.

Register a webhook endpoint#

A webhook endpoint is a row scoped to a specific (tenant, customer) pair. It records the URL Aforo POSTs to, the subscribed event types, and the signing secret. Register one per customer per receiver URL:

curl -X POST 'https://storefront.aforo.ai/api/v1/webhook-endpoints' \
  -H 'X-Tenant-Id: tenant_smartai' \
  -H 'Authorization: Bearer <your-jwt>' \
  -H 'Content-Type: application/json' \
  -d '{
    "endCustomerId": "customer_acme",
    "url": "https://yourdomain.com/webhooks/aforo",
    "secret": "<random-256-bit-secret>",
    "events": ["INVOICE_GENERATED", "PAYMENT_OVERDUE", "WALLET_LOW_BALANCE"],
    "description": "Slack #billing alerts for Acme",
    "active": true,
    "maxRetryAttempts": 3,
    "initialBackoffSeconds": 2,
    "backoffMultiplier": 2.0
  }'

Subscribing to all events#

Pass events: ["*"] to subscribe to every event the customer's preferences allow. Use this for operational receivers (a single Datadog drain, an audit log) where you want a complete record without listing every event type by hand.

Verify the HMAC signature#

Every delivery carries an X-Aforo-Signature header. You MUST verify it before trusting the payload. The format is Stripe-style:

X-Aforo-Signature: t=<unix-seconds>,v1=<hex(HmacSHA256(t + "." + body, secret))>
X-Aforo-Schema-Version: 1
Content-Type: application/json

To verify: parse t and v1, recompute HmacSHA256(t + "." + rawBody, secret) with the secret you registered, constant-time compare. Same recipe as Stripe's webhook verifier — the bytes signed are exactly t, a period, and the raw HTTP body.

import express from 'express';
import crypto from 'crypto';

const app = express();

// CRITICAL: capture the raw body BEFORE JSON.parse. Re-stringifying after
// parsing would lose whitespace and key order and the HMAC would never
// match. Express's express.json() exposes a verify hook for this.
app.use(express.json({
  limit: '5mb',
  verify: (req, _res, buf) => { (req as any).rawBody = buf.toString('utf8'); },
}));

function verifyAforoSignature(header: string, rawBody: string, secret: string): boolean {
  const parts = Object.fromEntries(
    header.split(',').map(kv => {
      const i = kv.indexOf('=');
      return [kv.slice(0, i).trim(), kv.slice(i + 1).trim()];
    })
  );
  if (!parts.t || !parts.v1) return false;

  const expected = crypto
    .createHmac('sha256', secret)
    .update(parts.t + '.' + rawBody)
    .digest('hex');

  try {
    return crypto.timingSafeEqual(
      Buffer.from(expected, 'hex'),
      Buffer.from(parts.v1, 'hex')
    );
  } catch {
    return false;
  }
}

app.post('/webhooks/aforo', (req, res) => {
  const ok = verifyAforoSignature(
    req.header('x-aforo-signature') ?? '',
    (req as any).rawBody,
    process.env.AFORO_WEBHOOK_SECRET!
  );
  if (!ok) return res.status(401).send('invalid signature');

  // Now trust req.body
  const { eventType, payload } = req.body;
  console.log('received', eventType, payload);
  res.sendStatus(200);
});

Delivery semantics#

Retries and backoff#

Aforo retries on any non-2xx response, connection error, or timeout. Exponential backoff is configured per endpoint at register time:

• maxRetryAttempts (default 3) — total attempts including the initial delivery.
• initialBackoffSeconds (default 2) — wait before the 2nd attempt.
• backoffMultiplier (default 2.0) — each attempt waits N× the previous.

With defaults: t+0, t+2s, t+4s. After the final attempt fails, the delivery row is marked FAILED with the last error message and is not retried again. The next event for the same endpoint dispatches independently.

Idempotency#

Every delivery carries a stable eventId in the JSON body. Use it to deduplicate. Retries reuse the same eventId so your handler can safely treat any second arrival as a duplicate. For CUSTOM events fired by the trigger engine in response to a SYSTEM event, the eventId is derived as <originalEventId>:<customEventType> so even Kafka re-delivery of the source SYSTEM event produces a stable derivative ID.

Ordering#

Events are dispatched in the order their producing services publish them, but retries can re-order arrivals at your endpoint. If you care about strict ordering (e.g.SUBSCRIPTION_ACTIVATED before INVOICE_GENERATED for the first invoice), use the occurredAt field on each event, not arrival order.

Test your integration locally#

Aforo ships a standalone test harness that exercises the full pipeline — webhook registration, signing, signature verification, custom-event emit, delivery logs — without you having to write anything beyond your own receiver. It runs as a small Express app on port 3001 and includes a dashboard for inspecting every delivery in real time.

# Clone the org-service repo (the harness lives inside it for historical reasons)
git clone https://github.com/aforoai/aforo-nextgen-organization-service.git
cd aforo-nextgen-organization-service/notification-test-app

npm install
npm start   # → http://localhost:3001

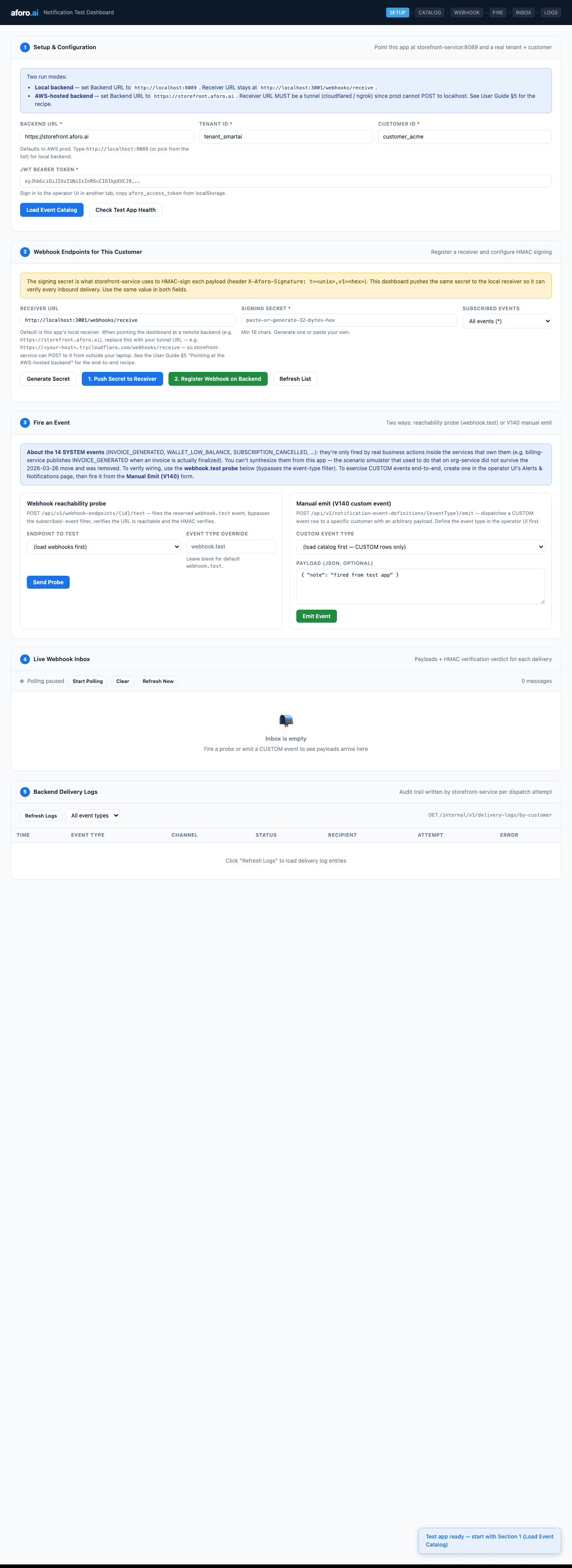

The test harness dashboard. Five sections cover the full pipeline: setup, webhook registration, fire an event, live inbox, backend delivery logs.

The flow is the same whether you point it at a local backend or AWS prod via a Cloudflare quick tunnel:

1. Section 1 — paste your JWT, load the event catalog.
2. Section 2 — generate a signing secret, push it to the receiver, register the webhook.
3. Section 3 — fire the reachability probe or emit a custom event.
4. Section 4 — watch the live inbox light up with verified ✅ badges.
5. Section 5 — cross-check the backend's own delivery audit.

Section 2 of the harness. Generate a hex secret, push it to the local receiver (so signatures verify), then register the webhook with the same secret on the backend. The two-action pattern keeps the symmetry visible.

Customer notification preferences#

Your end customers can manage their own notification subscriptions from their portal. Each row in notification_preferences is keyed by (tenant_id, end_customer_id, event_type) and records:

• Whether this event is enabled for this customer at all.
• Which channels (EMAIL / WEBHOOK / SMS / PAGERDUTY) the customer wants to receive it on.
• Optional threshold + cooldown for events that fire on continuous data (e.g. only fire USAGE_THRESHOLD_REACHED once every 60 minutes).

Preferences are applied at dispatch time. If your customer disables an event in their portal, your webhook will stop receiving it for that customer even if your endpoint subscribed to it. The dispatch is logged as SKIPPED in the backend delivery log so you can audit drop-offs.

Three SYSTEM events are mandatory — they fire regardless of customer preference, because they protect the customer from financial or service-disruption risk:

• WALLET_BALANCE_DEPLETED — wallet at zero, service about to be cut
• PAYMENT_OVERDUE — escalation needed
• SERVICE_DEGRADATION — uptime alert

API reference#

All endpoints expect X-Tenant-Id and Authorization: Bearer <jwt> headers. The JWT must carry OWNER, ADMIN, or BILLING_ADMIN role for admin endpoints; CUSTOMER for portal endpoints. Cross-tenant requests return 404 (existence-leak prevention), not 403.

Troubleshooting#
